Instrumentation Cables

IS 1554 compliant instrumentation cables for process control, PLC/DCS field wiring, and sensor loops — single pair to 24 pair, armoured and unarmoured, made to order.

IS 1554 CompliantPart 1 (unarmoured) & Part 2 (armoured)
1 to 24 PairSingle pair through high pair-count trunk cables
Armoured OptionsGalvanized steel wire armour for tray/burial
Made to OrderCustom pair counts and lengths

About Our Instrumentation Cables

JCI Cables manufactures instrumentation cables for process control, PLC/DCS field wiring, and sensor/transmitter signal loops across refineries, cement plants, and steel mills. We supply single-pair, multi-pair (2P/4P/6P/12P/24P), and triad configurations, individually and overall shielded, in both armoured and unarmoured constructions to IS 1554 Part 1 & Part 2.

Manufactured to order at our Wazirpur, New Delhi facility — tell us your required pair count, conductor size, and armouring specification for a quotation.

Key Specifications

📏 Physical Properties

Configuration
Single Pair, Multi-Pair (2P–24P), Triad
Conductor Size
0.5 / 0.75 / 1.5 Sq.mm Stranded Copper

🛡️ Shielding

Options Available
Individually Shielded Pairs (ISP), Overall Shield
Material
Aluminium Foil + Tinned Copper Drain Wire

⚙️ Armouring

Unarmoured
IS 1554 Part 1
Armoured
Galvanized Steel Wire (GSW), IS 1554 Part 2

🌡️ Environmental

Insulation
PVC / FRLS
Voltage Rating
1100 V

Our Instrumentation Cable Range

4 instrumentation cables products — manufactured to order at our New Delhi facility. WhatsApp us for the latest pricing.

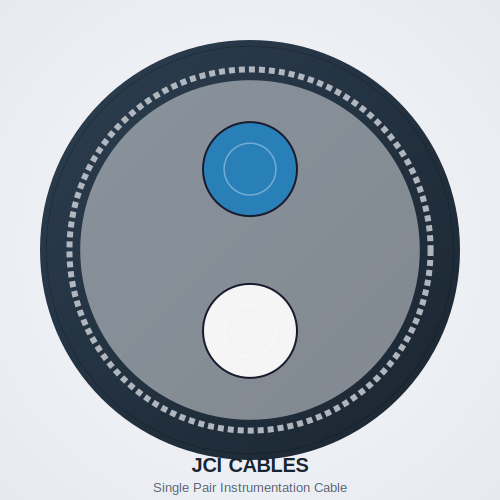

Single Pair Instrumentation Cable, Unarmoured

Single Pair Instrumentation Cable, Unarmoured

₹18/ Meter
*indicative, ask for latest rate

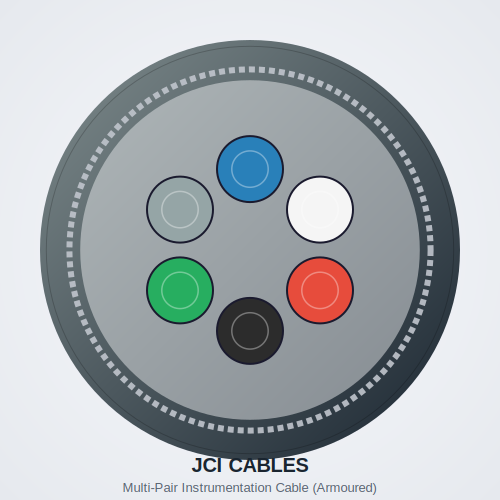

Multi-Pair Instrumentation Cable, Armoured

Multi-Pair Instrumentation Cable, Armoured

On Request
*indicative, ask for latest rate

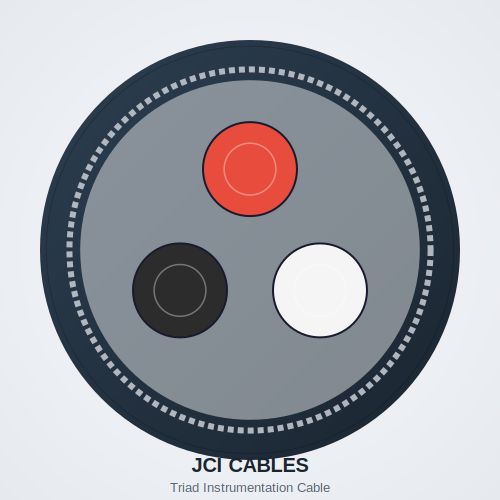

Triad Instrumentation Cable, Unarmoured

Triad Instrumentation Cable, Unarmoured

₹22/ Meter
*indicative, ask for latest rate

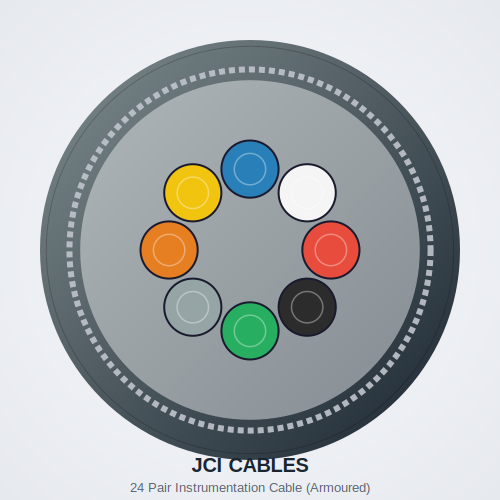

24 Pair Instrumentation Cable, Armoured

24 Pair Instrumentation Cable, Armoured

On Request
*indicative, ask for latest rate

Why Choose Our Instrumentation Cables?

IS 1554 Compliant: Manufactured to Part 1 (unarmoured) and Part 2 (armoured) standards
Custom Pair Counts: Single pair through 24-pair, plus triad configurations for RTDs
Individually Shielded Pairs: Minimizes crosstalk in multi-pair trunk cables
Armoured for Tray or Burial: Galvanized steel wire armour for outdoor and buried routing
FRLS Insulation Available: For cable trays in enclosed process areas
Bulk & Custom Drum Lengths: Reel supply for panel builders and system integrators
Pan-India Delivery: Reliable shipping across India with tracking
Expert Support: Technical guidance on pair count and armouring selection

Common Applications

🏭 Process Control

PLC/DCS field wiring in refineries, cement, and steel plants.

🌡️ Sensor & Transmitter Loops

4-20mA loops, RTDs, and thermocouples with low-noise shielded wiring.

🛢️ Refineries

Armoured trunk cables for hazardous-area field instrumentation.

🎛️ Marshalling Cabinets

High pair-count cables trunking signals to DCS input cabinets.
